Delivering a play space for the future in one of Sydney’s most history-steeped parklands.
Parramatta Park Trust appointed Fleetwood to help deliver an inspired $2 million playground, located in its new Paddocks Precinct – the largest financial injection in Parramatta Park’s proud history.
Working alongside the project designers, McGregor Coxall, the concept called for a seamlessly integrated play space that was creative, safe and durable enough to serve the ever-growing population of Western Sydney families for years to come.
Our involvement.
Using our proprietary project methodology, FORGE (formerly Fleetwood Urban) collaborated with McGregor Coxall on the structural elements of the playground, from concept and detail design, through to execution and installation on site.
Given many of the elements were architecturally complex, a strong design understanding was needed between both parties. The FORGE (formerly Fleetwood Urban) team took the time to clearly understand the vision McGregor Coxall wanted to create and, adding value at every stage of the project, was able to deliver it seamlessly. We then partnered with Coordinated Landscapes to complete the final delivery of the built works, on time and on budget.
Design Challenge
McGregor Coxall’s vision was for a connected space where play is continuous and seamless. The design needed to provide different layers for children to enjoy, with a range of challenges, including climbing and water play opportunities.
Construction Challenge
The deadline was tight. The structures were complex. FORGE (formerly Fleetwood Urban) also needed to employ a ‘light touch’ approach to the construction phase, with all work taking place in a no excavation zone due to the sensitive Indigenous significance of the area. In fact, Indigenous artefacts were found after the initial design – which required piling – that had already been approved. After careful consultation with local elders, a significant rethink of the construction methodology was required.
Innovations
Being unable to excavate, our team had to think and design outside of the box in order to deliver the architect’s vision in a way that was structurally adequate whilst touching the ground very lightly.
To do this, the structures that can be seen from the outside shroud a myriad of creative construction solutions beneath, each carefully tailored to the different play elements. Achieving this required highly innovative thinking from design and engineering, to fabrication and install. It also called for very accurate ground line surveys and 3D modelling of the ground plane.
One specific example of innovation is the 12mm thick steel plate that surrounds each of the playground areas. These had to be painstakingly cut by CNC (Computer Numerical Control) to ensure they fit perfectly on the ground plane with no gaps and no excavation required.
Features

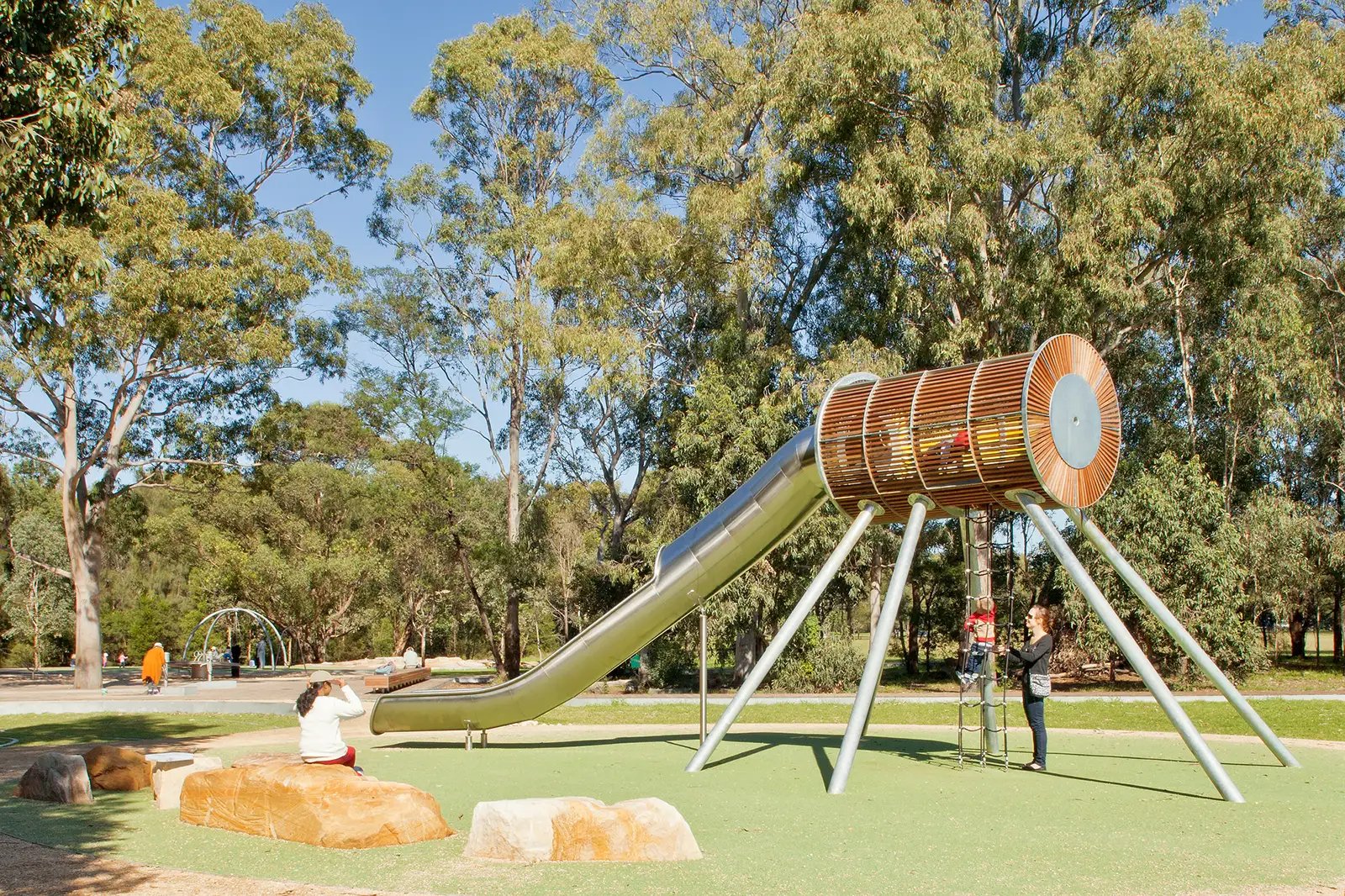

- Giant ‘Elephant’ slide
- Main ‘A’ playdeck
- Multiple smaller bespoke play items
- Flying fox
Safety and Risk Considerations
Our proprietary project methodology helped to guide ongoing collaboration with all parties to see the playground realised, safely, while also removing any risk of damaging highly significant Indigenous artefacts in the area.
Sustainability Considerations
Respecting (and preserving) the Indigenous significance of the site was a critical facet of the project and was never far from our minds. We were also very conscious of working around the park’s existing trees, so as not to disturb their root systems. At a construction level, all of the hardwood materials used were sustainably sourced.
